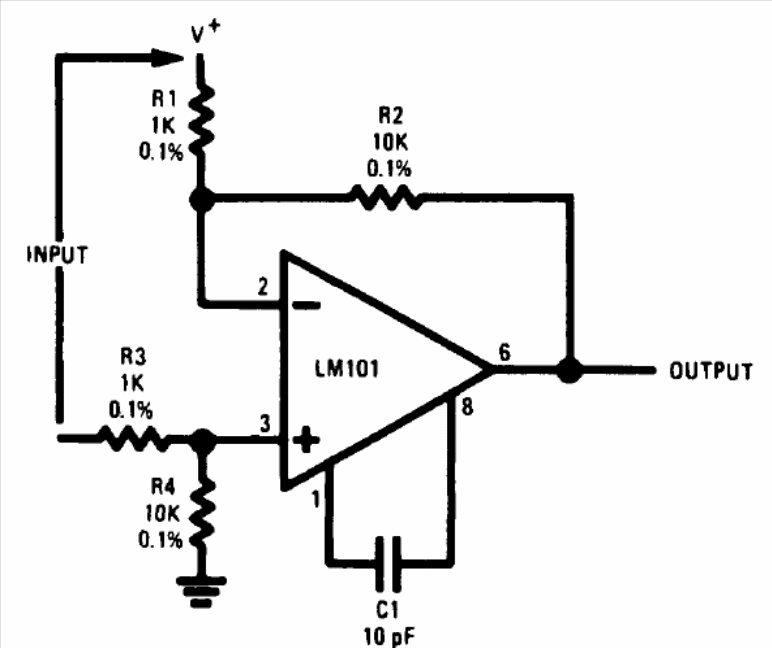

In the figure we have a precision differential amplifier found in the Linear Applications Handbook of the National Semiconductor of 1994. The circuit can be implemented with more modern operating systems and the voltage gain is 10 in this case, given by the ratio between R2 and R1.
