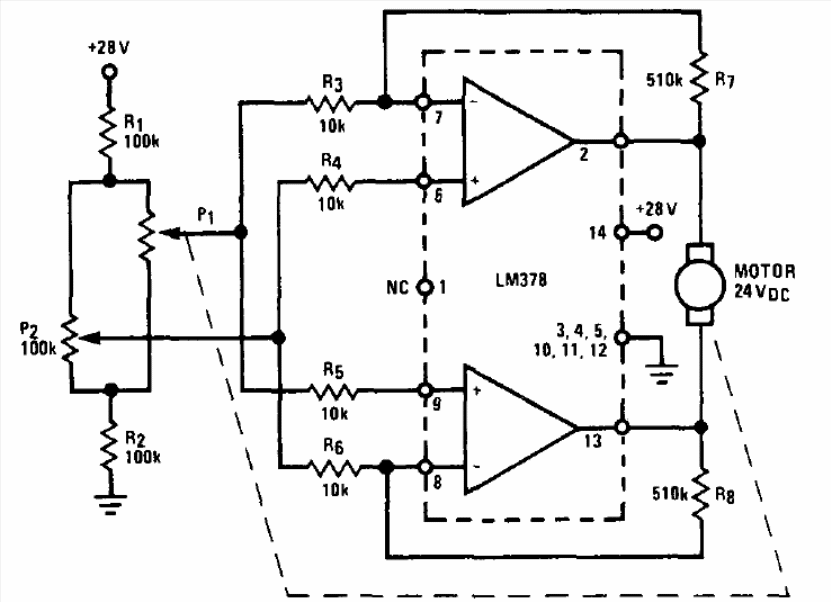

This circuit is from the National Semiconductor Audio Handbook, as it uses an audio power operating to control a DC motor. The circuit controls the speed through a potentiometer with reference to a sensor potentiometer in the motor. The maximum motor current is 700 mA.
