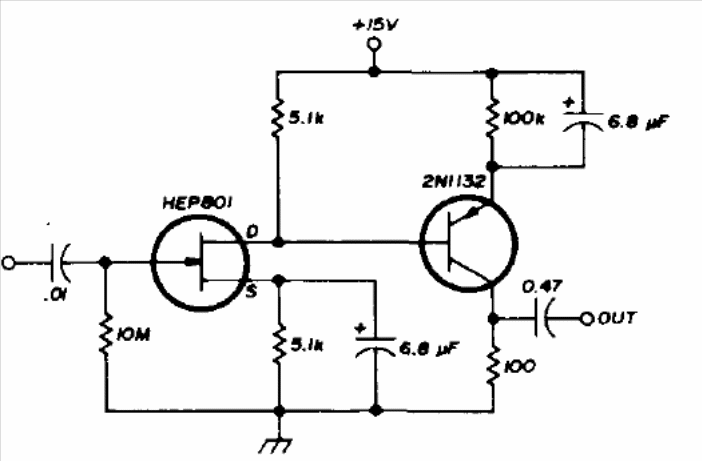

We found this circuit in a 1976 publication for radio amateurs. It was originally intended for use in intercoms and transmitters. The circuit has a very high input impedance, being suitable for piezoelectric microphones. The PNP transistor can be the BC558.
