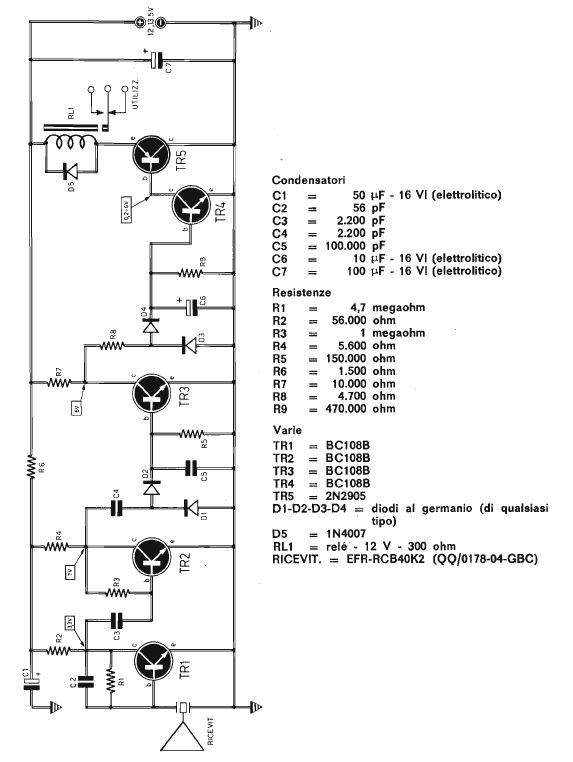

This is the receiver circuit for the CB13978B, found in the same 1977 Elettronica Prática magazine. The critical element remains the transducer for the 42 kHz frequency. The other components are common. The relay is 12 V x 50 mA coil.
Ultrasonic Alarm Receiver (CB13979E)
