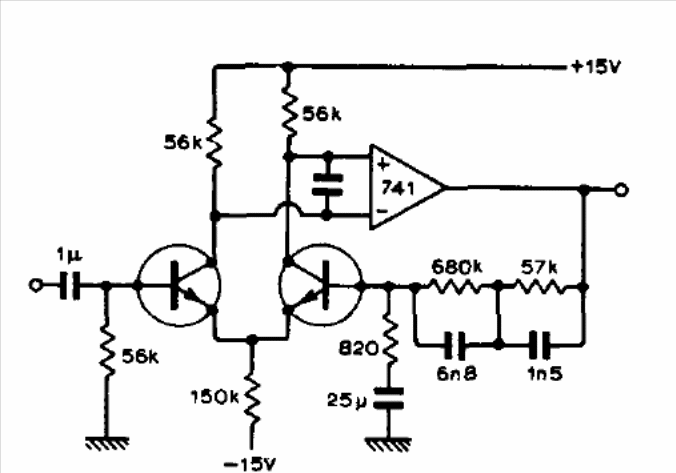

Low Noise Pre Amplifier (CB13682E)

The power supply for this 1972 circuit must be symmetrical and the BC549 transistors. Care with the layout is important to avoid capturing tinnitus.

| Clique na imagem para ampliar |

Sine to Square Converter (CB18931E)
This circuit converts sinusoidal signals into squares and can be powered by voltages from 1.5 to 5...
Constant current source (CB21536E)
Found in a 1969 Electronic Design, this circuit is intended to power a load up to 300 mA....
2-transistor amplifier (CB23760E)
This amplifier was published in the July 1961 Radio Electronics magazine. It announced the release of...
