Adjustable Switched Power Supply (CB13922E)

Details
Written by: Newton C. Braga

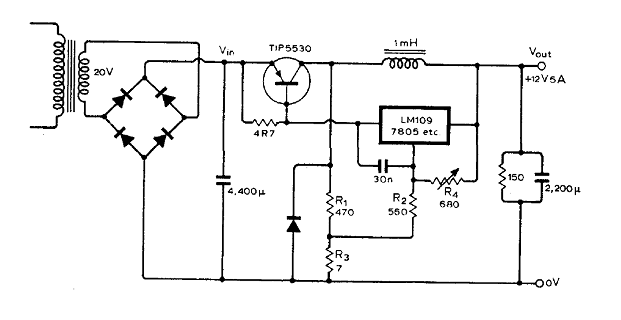

We found this circuit in a 1976 documentation. The transistor and the integrated circuit must have good heat radiators. The rectifier diodes and the transformer must have current according to what is desired at the output.
