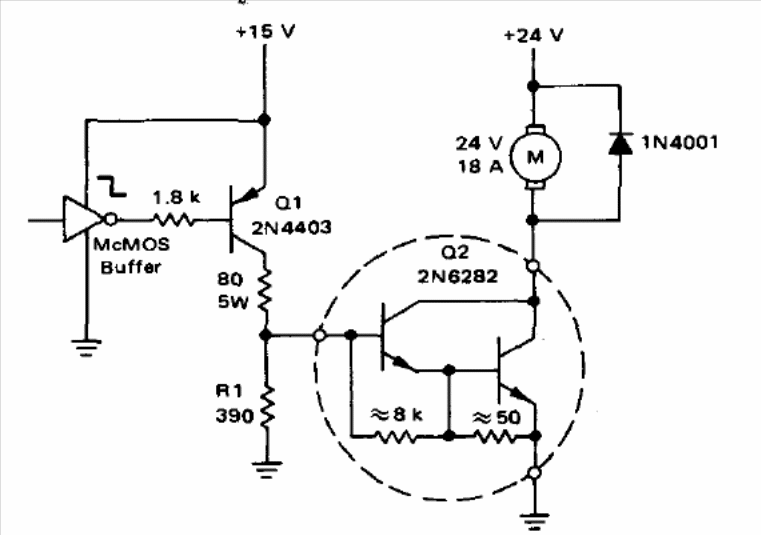

This circuit that drives the load when the logic output is at the low level, was obtained in a Motorola power controls manual from 1975. The transistors can be more modern types like the BC558 paraQ1 and a Darlington NPN of the TIP series according to load power that must be controlled.
