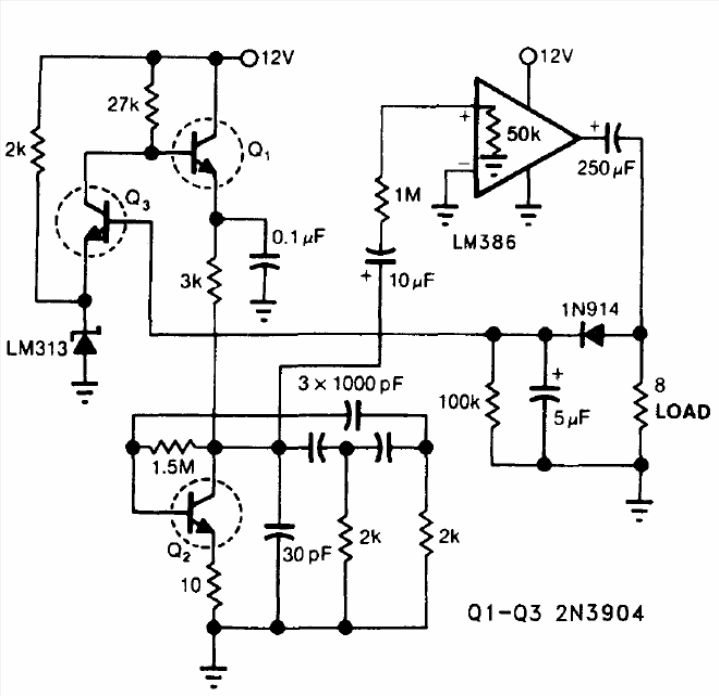

The configuration shown is suggested by National Semiconductor in its 1994 Linear Applications Handbook. The audio amplifier provides good output power to the generated signal. The transistors can be BC548.
| Clique na imagem para ampliar |
Sinusoidal Generator (CB14358E)
- Details
- Written by: Newton C. Braga
