Piezoelectric Transducer Amplifier LM11 (CB14347E)

Details
Written by: Newton C. Braga

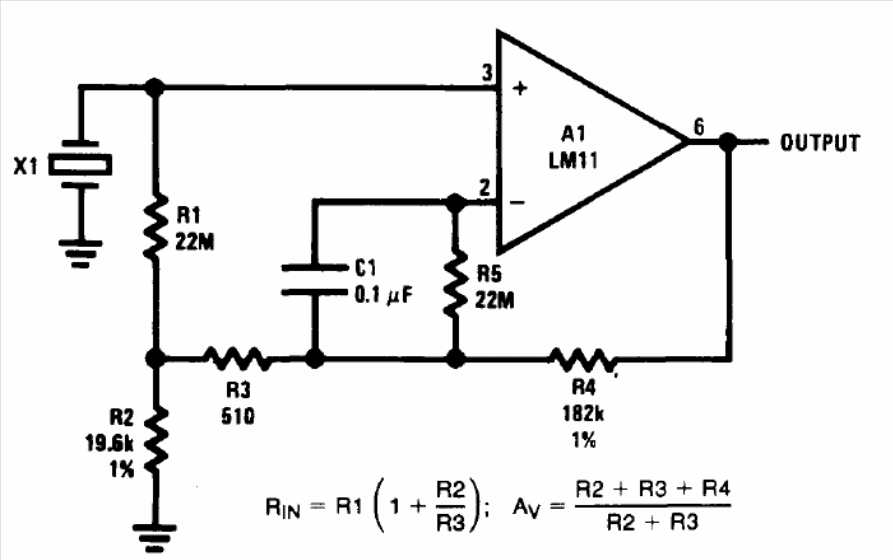

The LM11 is a precision operational amplifier from National Semiconductor. The circuit was found in the 1994 Linear Applications Handbook but can be implemented with more modern equivalent operational amplifiers.






| Clique na imagem para ampliar |
