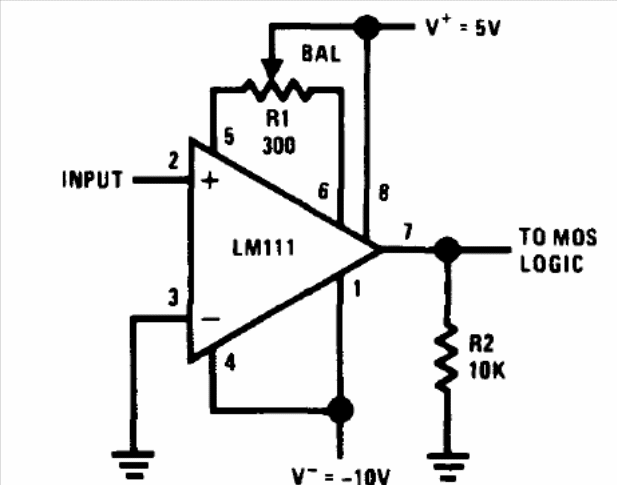

We found this circuit in the Linear Applications Handbook published by National Semiconductor in 1994. The circuit can be implemented with other operational and the source must be symmetrical with voltage according to the excited logic.
.
CMOS Output Zero Crossing Detector (CB14158E)
- Details
- Written by: Newton C. Braga
