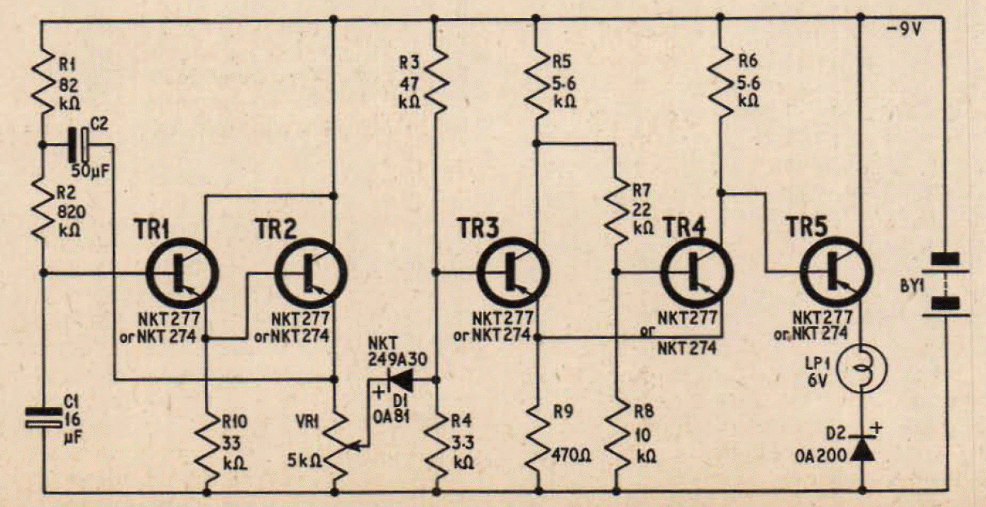

This timer for time intervals of up to a few minutes was found in an English publication in 1965. The semiconductor components used are no longer available, but we can assemble them with BC548 transistors with small changes in the values of some components. The diodes can be 1N4148 and instead of the lamp we can supply a small relay. The supply voltage can be between 6 and 12 V depending on the load.
