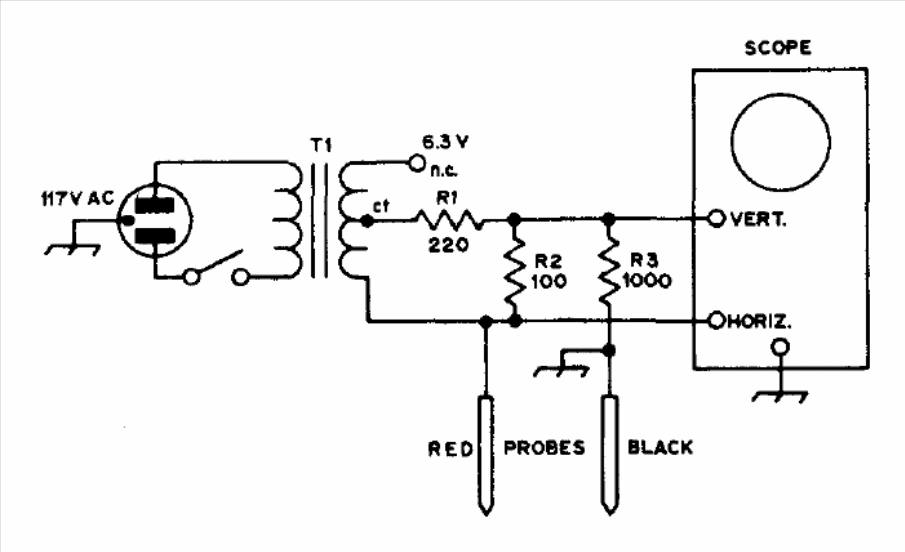

With this circuit it is possible to use an oscilloscope as a quick component test, checking its response to an alternating signal from a small transformer. The circuit is from a publication for radio amateurs from 1975.
| Clique na imagem para ampliar |
