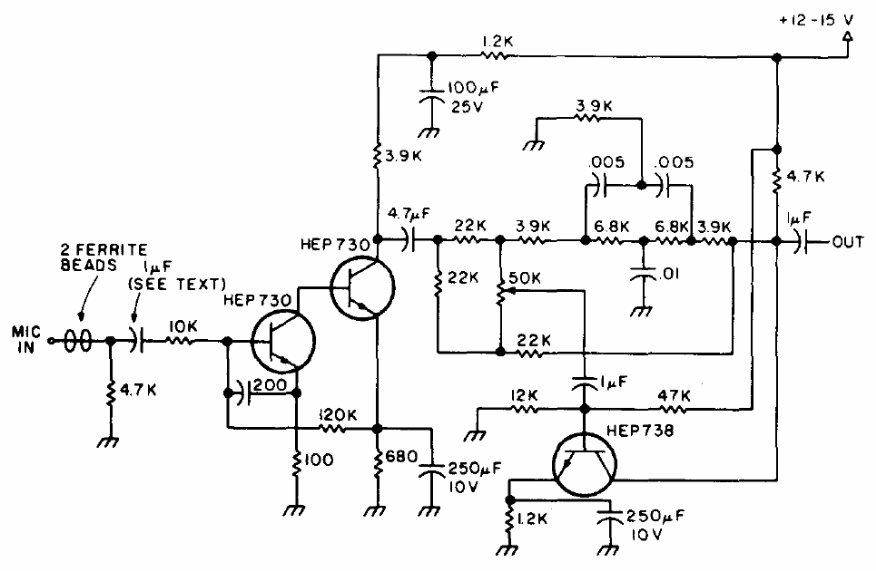

This circuit reinforces signals in a frequency range between 1500 and 2000 Hz for use in telecommunications. The circuit is from a publication for radio amateurs from 1977. The transistors can be the BC548. With the reinforcement in this range the words become better intelligible.
