Sinusoidal Generator LF155 (CB14359E)

Details
Written by: Newton C. Braga

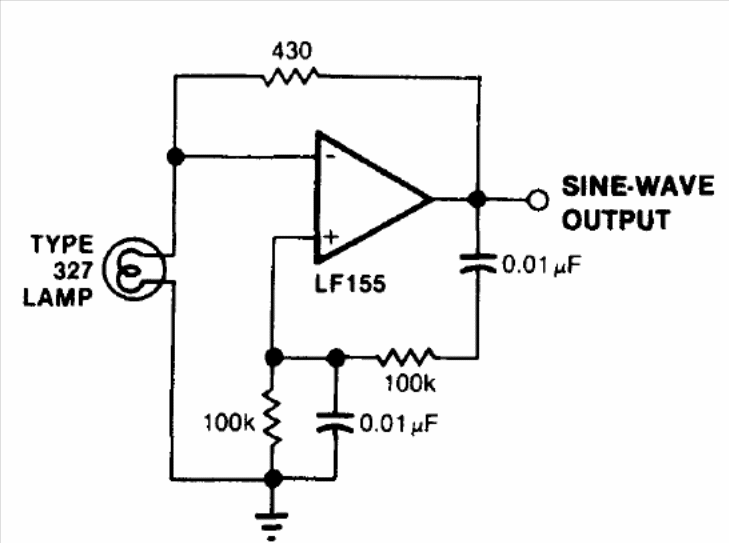

The operating system used in this circuit of the 1994 Linear Applications Handbook by National Semiconductor is not common, as is the stabilizer lamp.




| Clique na imagem para ampliar |
