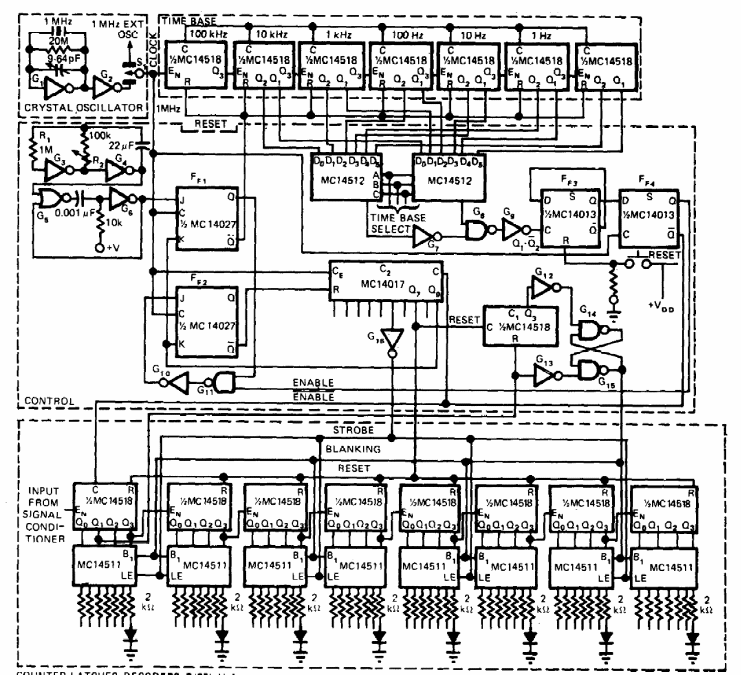

We found this frequency meter circuit in a 1974 documentation. The circuit is powered by 12 V and has 8 digits. Changes can be made using a prescaler to reach higher frequencies.
| Clique na imagem para ampliar |
CMOS Frequency Meter Up to 12 MHz (CB13726E)
- Details
- Written by: Newton C. Braga
