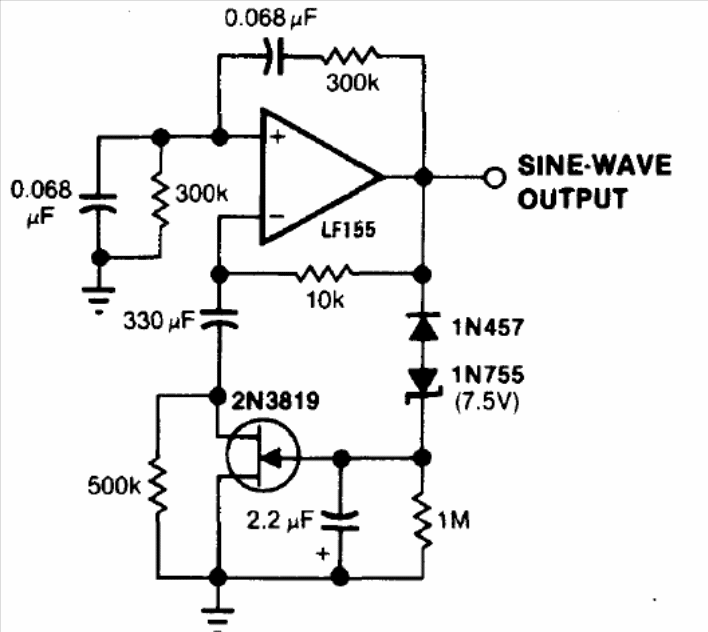

The circuit shown uses an unusual operation, but can be replaced by an equivalent, and a FET which can be the BF245. The circuit is from the 1994 Linear Applications Handbook by National Semiconductor. The frequency is given by the 68 nF capacitors.
