The integrated circuit used in this project is not common today, but the circuit can be adapted to use a modern equivalent. The circuit is from National Semiconductor's 1994 Linear Applications Handbook.
| Clique na imagem para ampliar |

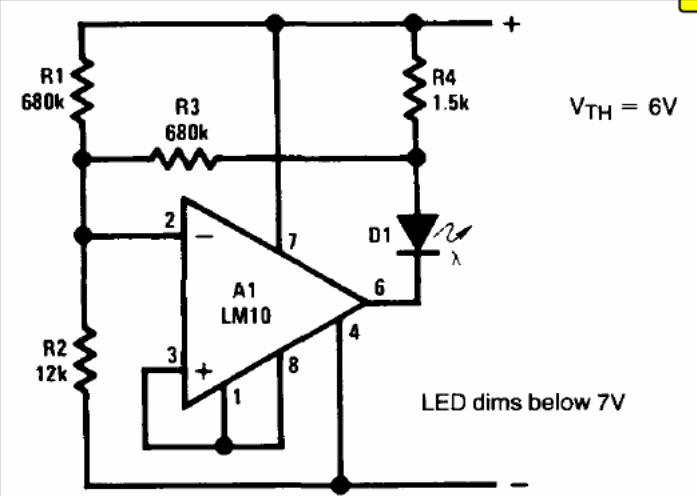

Battery Status Indicator LM10 (CB14324E)
