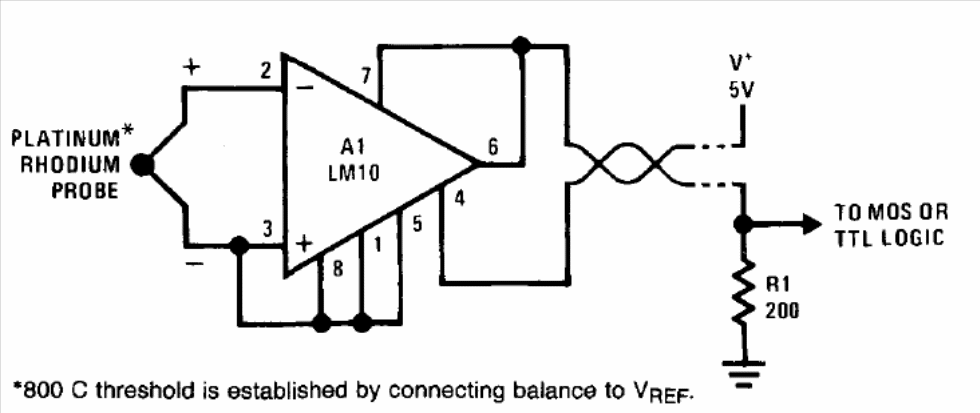

The circuit presented was found in the Linear Applications Handbook of the National Semiconductor of 1994. The sensor is a thermocouple, and the output is compatible with TTL logic. The circuit can therefore function as an input shield for microcontrollers.
