ASCII to Hexadecimal Converter (CB13761E)

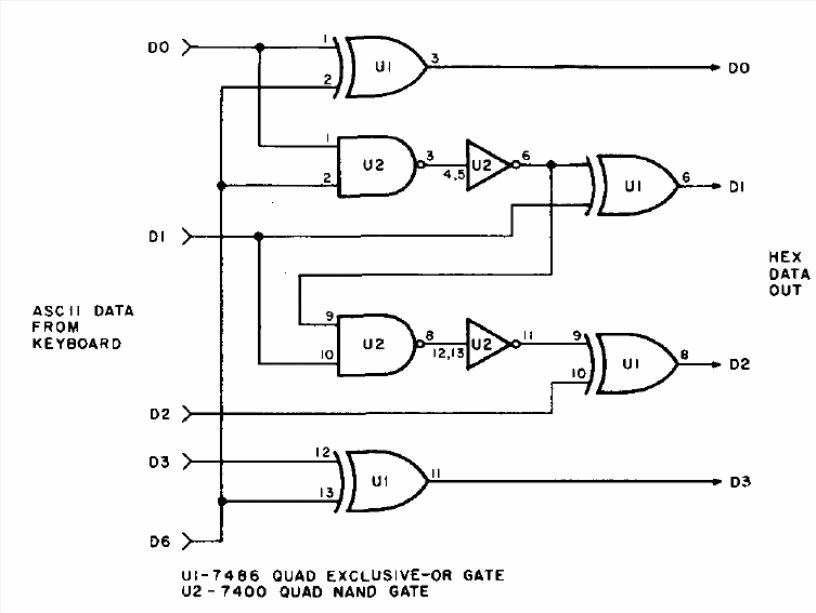

This TTL circuit was found in a 1978 technical documentation. The power must be supplied with 5 V. It converts ASCII characters to hexadecimal.
