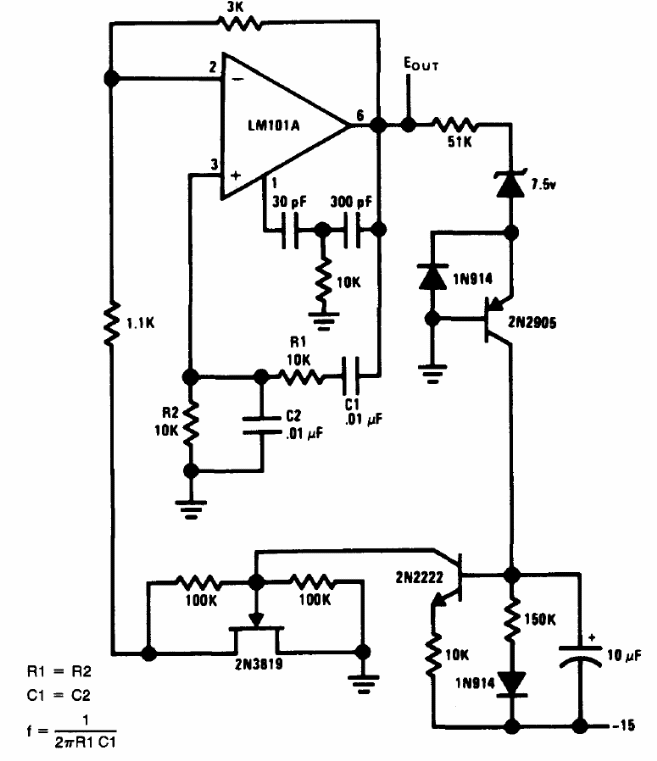

The configuration presented below was obtained in the Linear Application Handbook of the National Semiconductor of 1994. The circuit can be implemented with other operational ones and the FET is a general-purpose junction-FET transistor such as the BF245. The circuit must be powered by a symmetrical source.
| Clique na imagem para ampliar |
