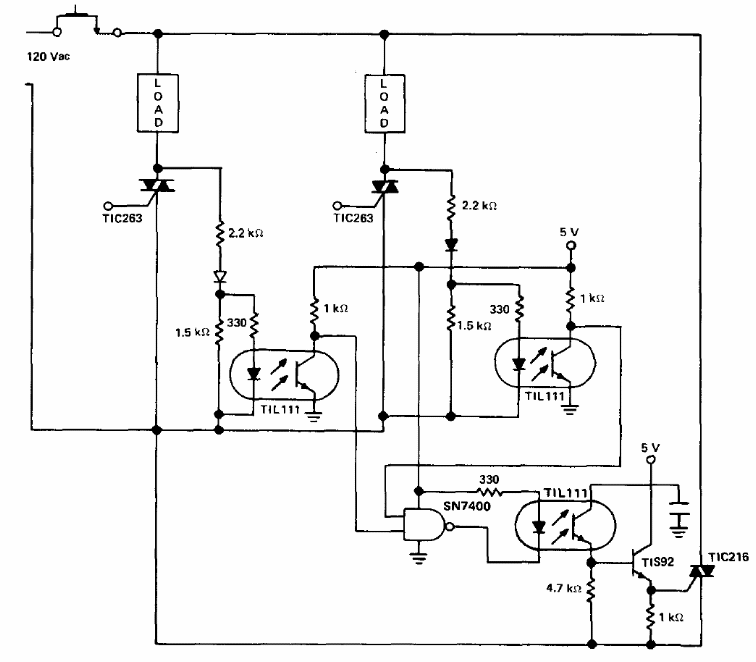

The purpose of this Thyristor Gating for uP Applications circuit from Texas Instruments is to prevent two triacs from being fired at the same time. The triacs are according to the controlled loads and equivalent optical couplers can be used.
