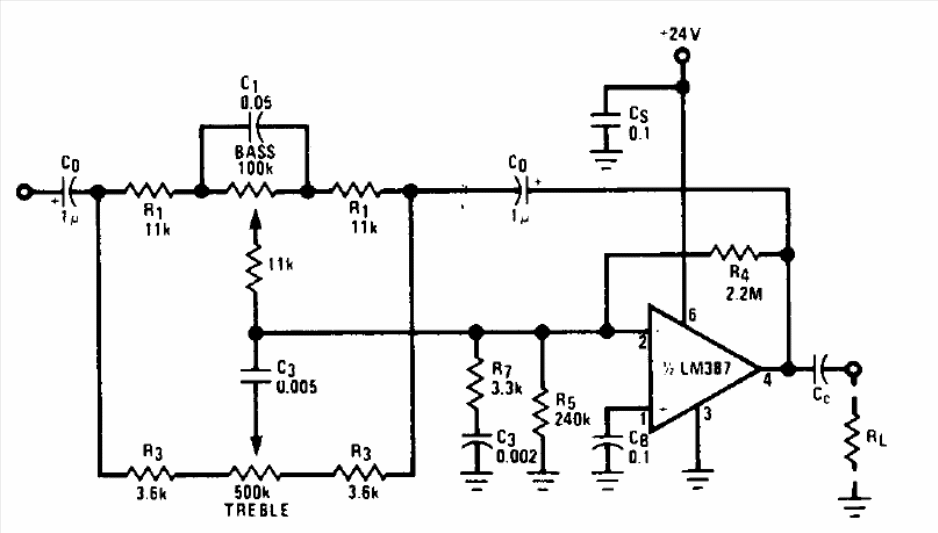

The circuit is from the 1977 National Semiconductor Audio Handbook. The bass and treble control is Baxandall type. The integrated circuit used is not common today.
| Clique na imagem para ampliar |
Active Tone Control LM387 (CB13928E)
- Details
- Written by: Newton C. Braga
