20 Hz to 20 000 Hz Band Pass Filter (CB13601E)

Details
Written by: Newton C. Braga

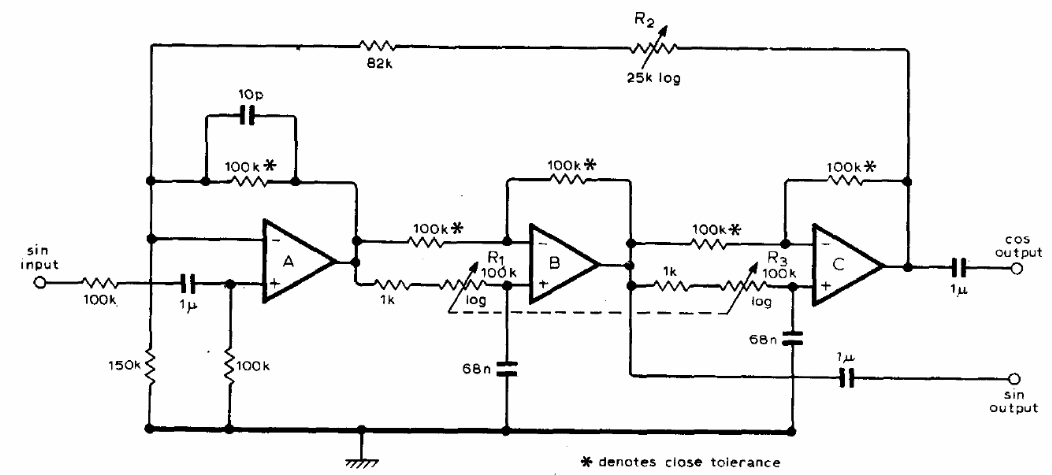

This filter is from a 1977 publication. The circuit employs three 741 or other operational amplifiers. The supply must be symmetrical and the components with (*) are low tolerance.




| Clique na imagem para ampliar |
