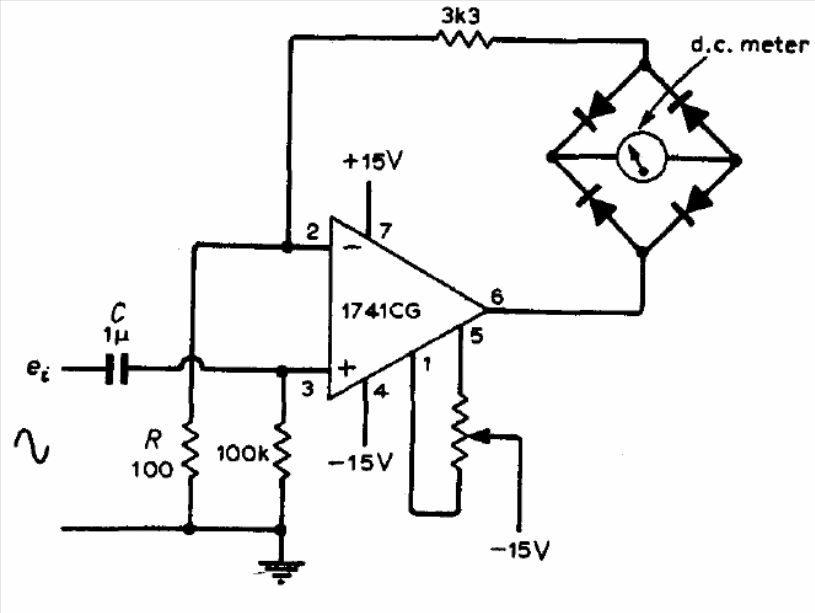

AC voltmeter with the 741 (CB13654E)

Details
Written by: Newton C. Braga



We found this circuit in a 1973 documentation. The null adjustment trimpot is 10k. The circuit can be powered by symmetrical sources from 9 V. The diodes on the bridge can be 1N4148.
