3 kHz Low Pass Filter LM3900 (CB13837E)

Details
Written by: Newton C. Braga

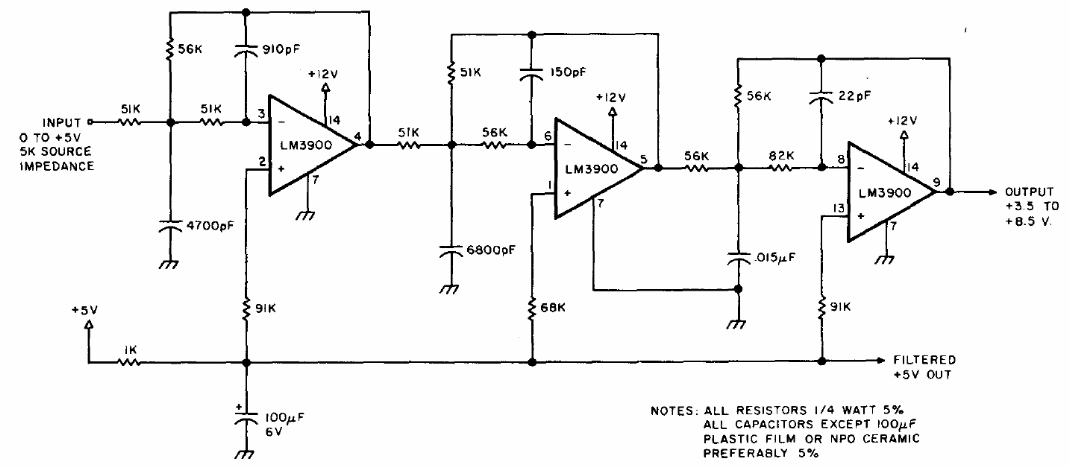

This filter was found in an old publication from 1977. The circuit must use a simple two-voltage source and the components can be changed for operation at other frequencies.
