Logic Controlled Ramp Generator (CB13931E)

Details
Written by: Newton C. Braga

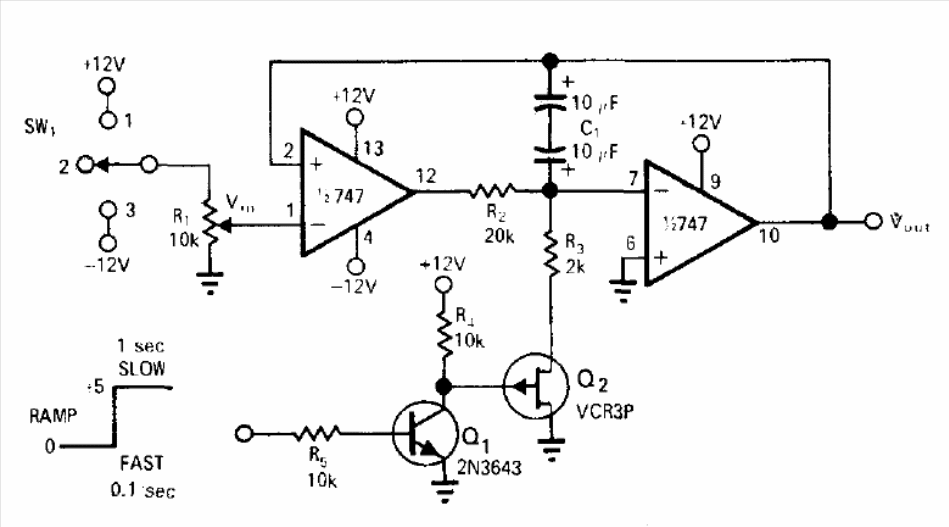

This circuit is from 1971 documentation. It generates a ramp given by the input signal. The FET can be BF245 and the bipolar 2N2222. The 747 consists of an operational double like to the 741.
