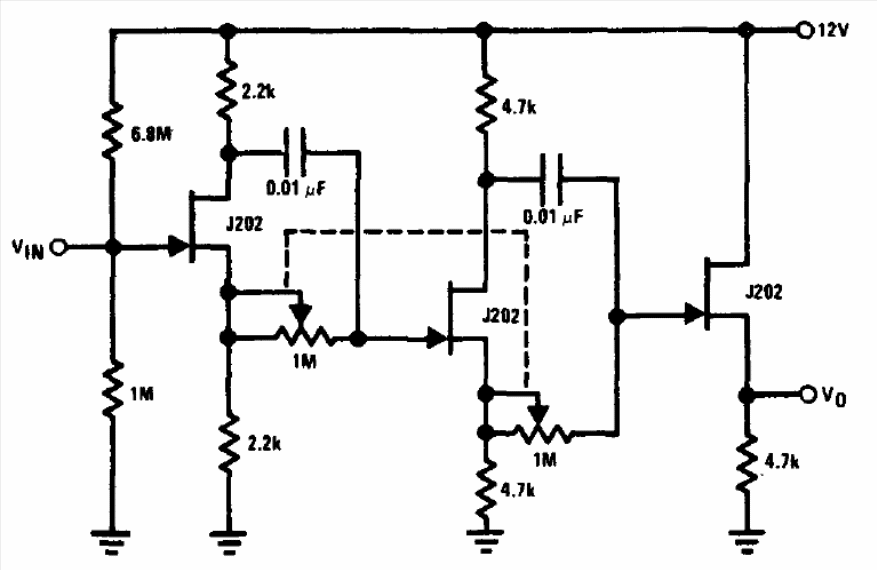

This circuit is from the National Semiconductor FET Databook. It is possible to shift the phase of a signal from 0 to 360 degrees. FETs can be equivalent as BF245 or MPF102. The input signal must be of low intensity and the signal obtained is also of small amplitude.
| Clique na imagem para ampliar |
