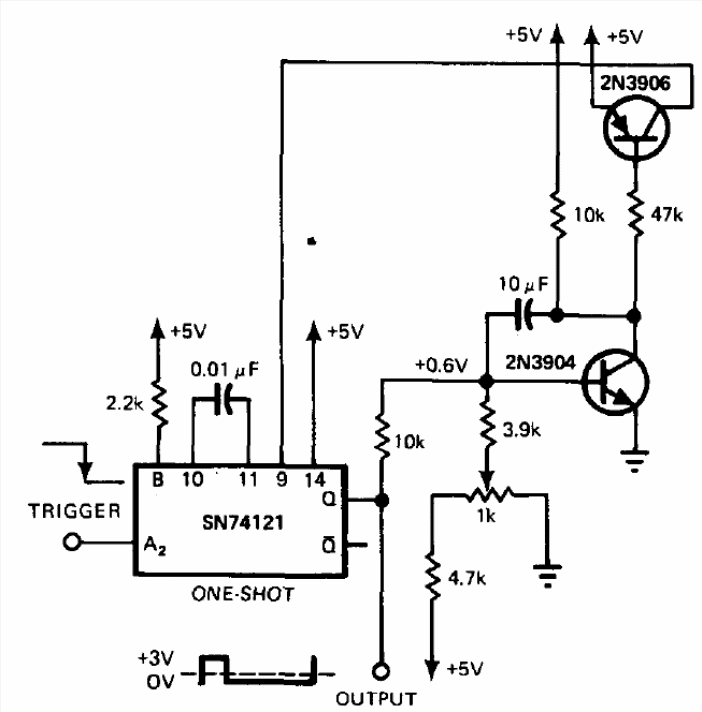

In this circuit, from a documentation from the 70's, we have the way to control the active cycle of a signal in the range of 17 to 50%. The circuit can be designed with BC558 and BC548 transistors and the supply voltage is 5 V. The circuit can be used in microcontrolled applications.
