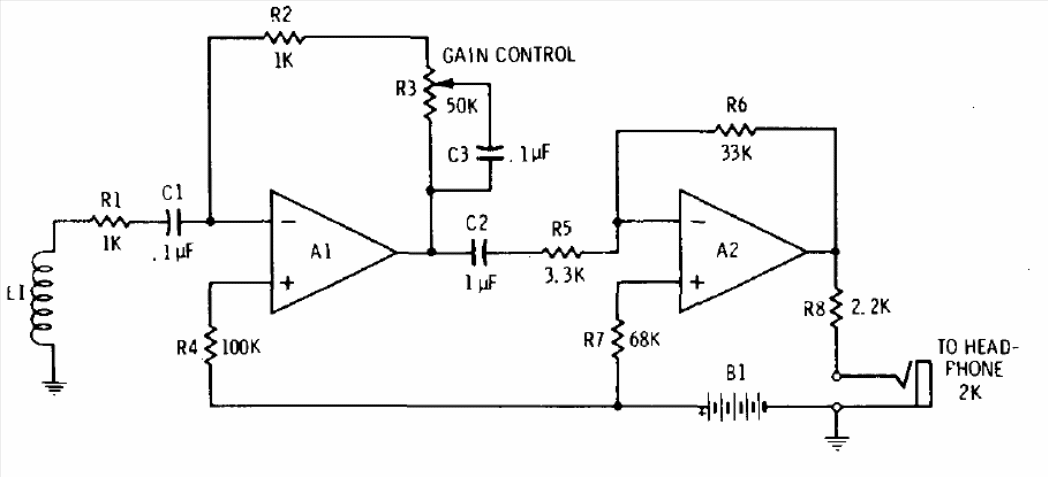

We found this amplifier circuit for inductive audio pickups in a documentation from the 70s. The operational amplifiers can be 741 with symmetrical source. The pickup consists of 100 to 500 turns of thin enameled wire in a plastic form.
