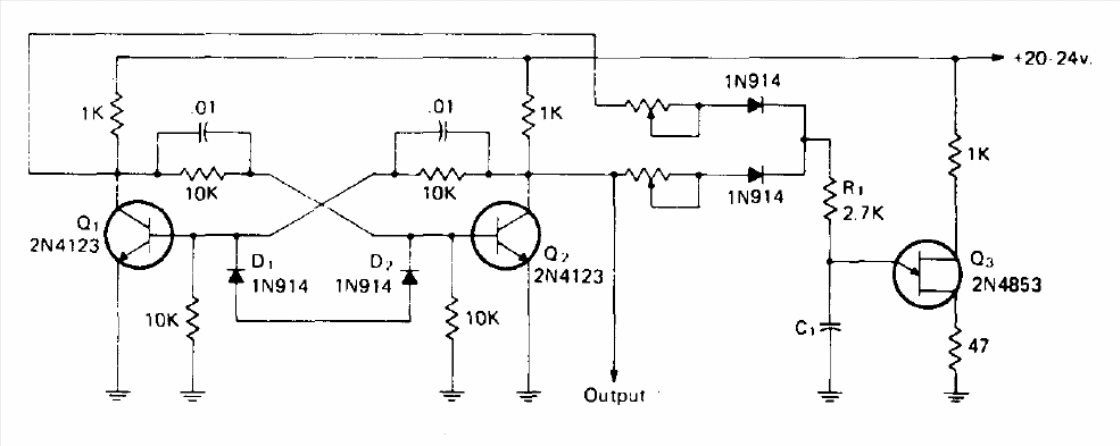

We found this circuit in a publication for radio amateurs in 1974. The bipolar transistors can be the BC548 and the unijunction can be the 2N2646. The generated frequency range depends on capacitor C.
| Clique na imagem para ampliar |
Adjustable Square Wave Generator (CB13638E)
- Details
- Written by: Newton C. Braga
