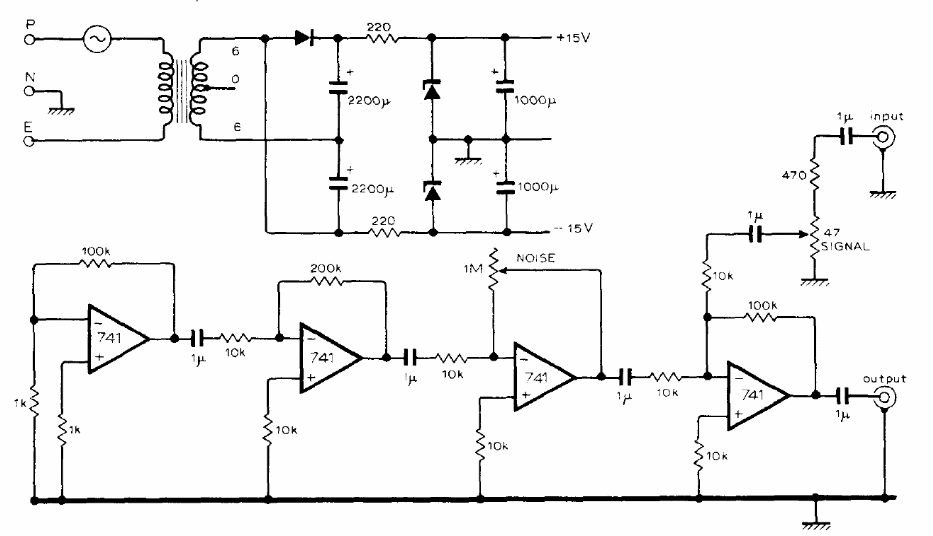

The sophisticated white noise generator we present uses four 741 operational amplifiers. The circuit was found in an American publication in 1977. The symmetrical power supply is given next to the main diagram.
| Clique na imagem para ampliar |
50 to 5000 Hz White Noise Generator with the 741 (CB13839E)
