Tachometer LM3900 (CB14214E)

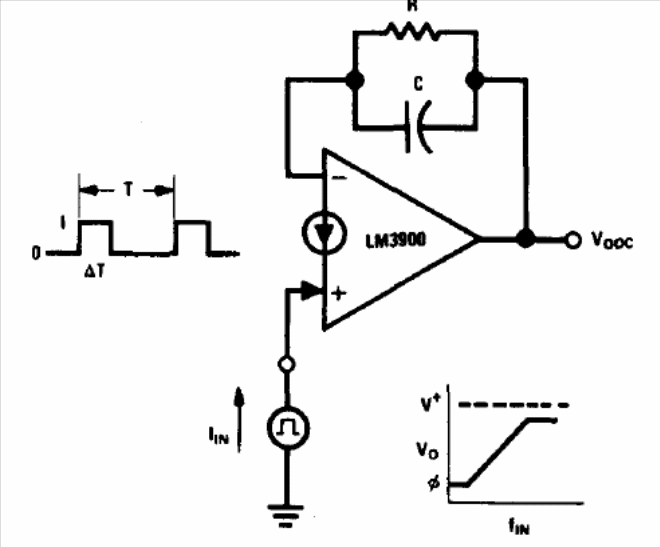

The circuit shown is from the 1994 Linear Applications Handbook by National Semiconductor. The base is a transconductance operational amplifier.

| Clique na imagem para ampliar |
