Transformerless 220 V To 110 V Reducer (CB13909E)

Details
Written by: Newton C. Braga

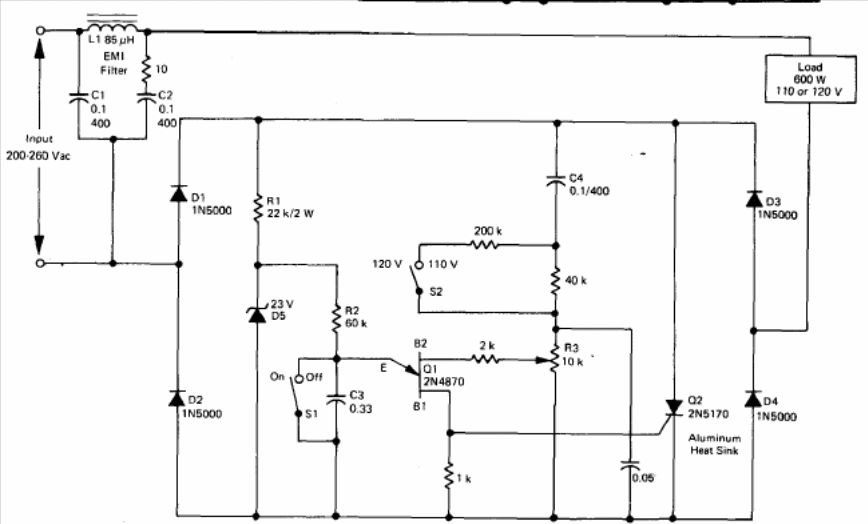

This 600 W reducer uses SCRs and a switching system. The circuit is from Motorola's 1975 documentation. Equivalent components can be tested for other powers.
