Voltmeter with FET (CB13657E)

Details
Written by: Newton C. Braga

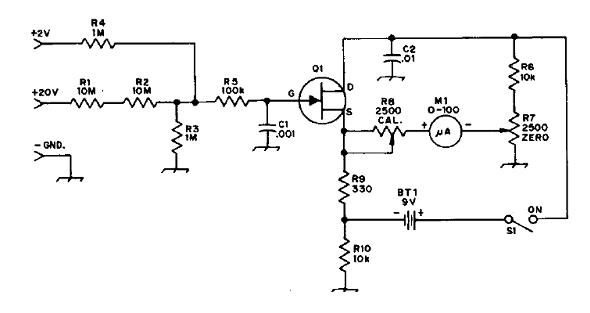

This FET voltmeter is from an old 1974 amateur radio publication. The circuit can use MPF102 or BF245 and has three scales. The instrument may have other funds, and the power is obtained from a 9 V battery.
