Variable Reluctance Sensor Amplifier (CB14215E)

Details
Written by: Newton C. Braga

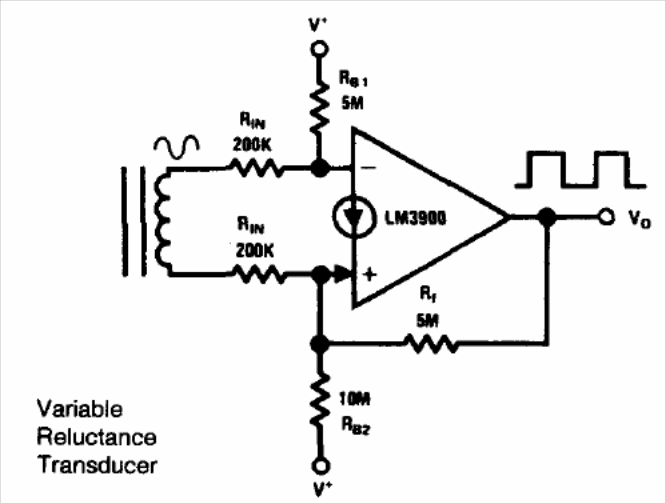

The circuit shown is from the National Semiconductor 1994 Linear Applications Handbook. The base is an LM3900 transconductance amplifier. The circuit provides a rectangular output signal, and the supply must be symmetrical.




| Clique na imagem para ampliar |
