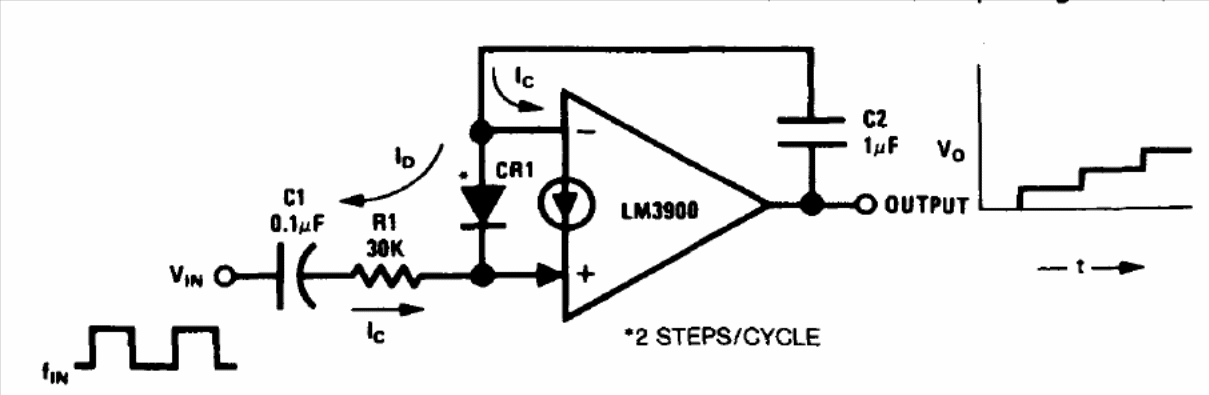

The presented circuit is based on an operational transconductance amplifier (OTA) having been found in the Linear Applications Handbook of National Instruments. Capacitors depend on the frequency of the input signal.
| Clique na imagem para ampliar |
