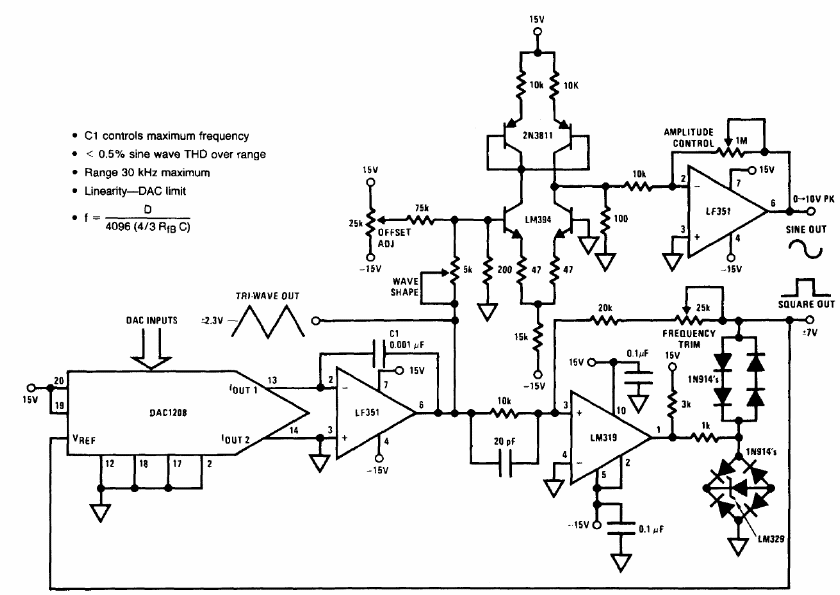

Digitally Controlled Function Generator (CB14369E)

This circuit is from 1994, from a technical documentation from National Semiconductor, but can be adapted to work with more modern components.
