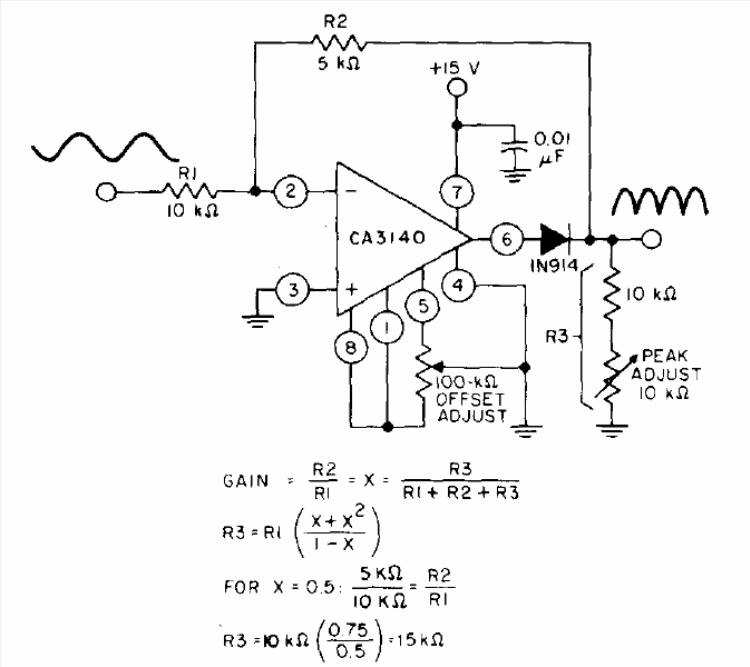

This circuit is from the 1977 RCA Linear Integrated Circuits Manual. The circuit has a pass-through range of -3 dB with 250 kHz and the formulas for calculating its characteristics are attached to the diagram.
| Clique na imagem para ampliar |
Absolute Value Amplifier CA3140 (CB13841E)
- Details
- Written by: Newton C. Braga
