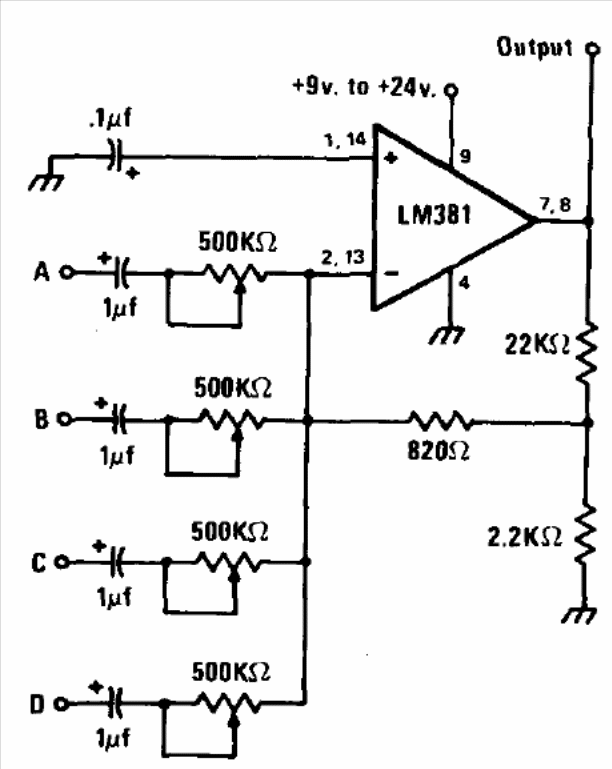

We found this circuit in a 1977 National Semiconductor technical documentation. The circuit has 4 input channels. The potentiometers can be 470 k and the signal cables must be shielded.
Four Channel Mixer (CB13698E)
- Details
- Written by: Newton C. Braga
