Instrument 1.5 V Power Supply (CB13911E)
- Details
- Written by: Newton C. Braga

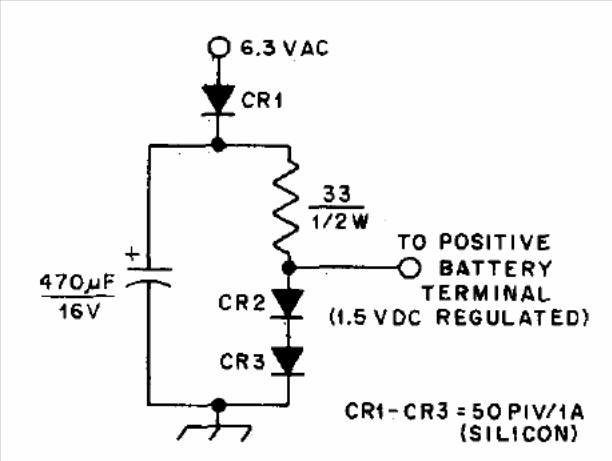

This power supply provides a 1.5 V voltage from the 6.3 V 6 V secondary of a common transformer. The diodes are silicon like 1N4148. The circuit is from 1976 documentation.
