This circuit shows how to use common logic functions to divide a frequency by 7. The output signal is square and integrated circuits of any logic can be used. We can use the circuit as a shield for microcontrollers.
| Clique na imagem para ampliar |

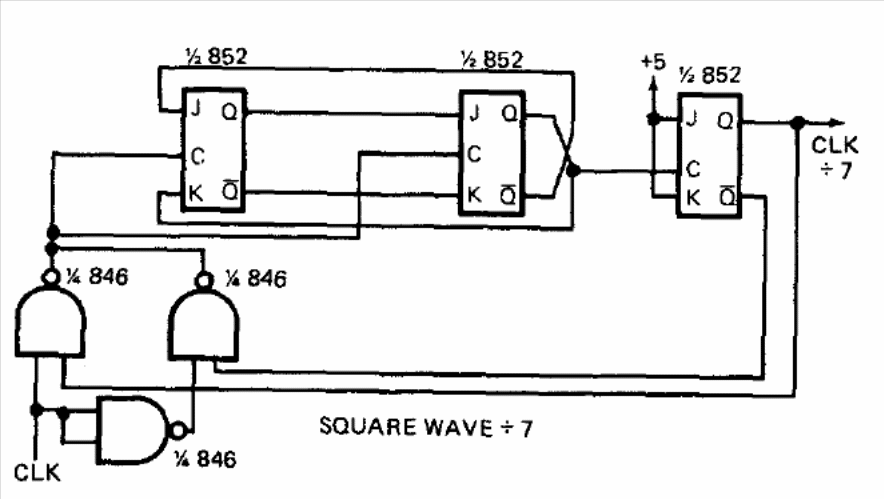

Divider by 7 (CB13728E)
- Details
- Written by: Newton C. Braga
