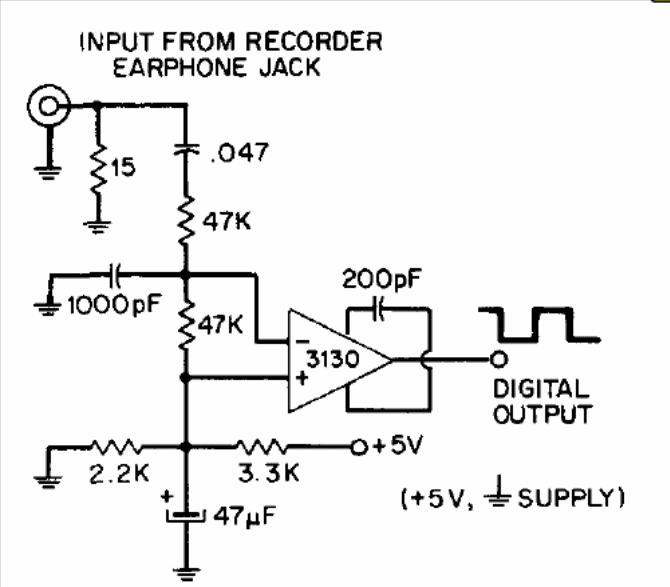

This circuit makes it possible to recover programs recorded on cassette tape as was common in MSX and older computers. The circuit is from a 1977 CMOS databook and must be powered by a 5 V source. The operational amplifier admits equivalent.
| Clique na imagem para ampliar |
