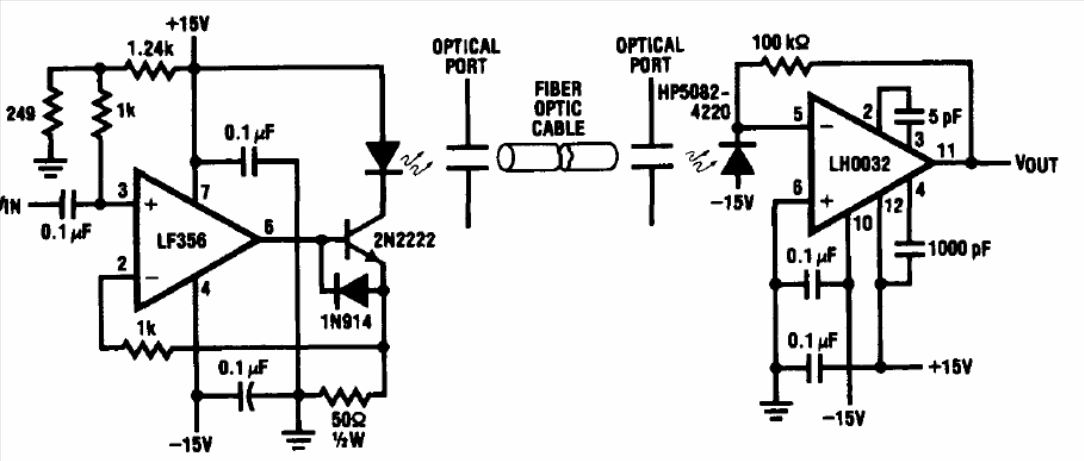

The operational ones used in this project are old types from National Semiconductor, since the application was found in the Linear applications Handbook of 1994. The circuit can be implemented with more modern equivalents.
| Clique na imagem para ampliar |
