40 to 60 MHz divider by 2, 3 and 4 (CB13730E)

Details
Written by: Newton C. Braga

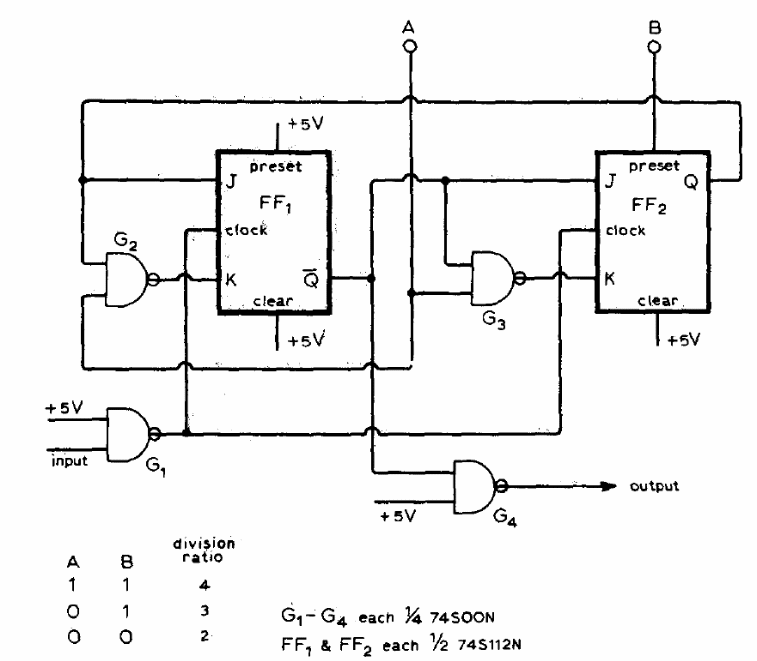

This circuit is from an old American publication. It divides a 40 to 60 MHz TTL signal by integer values such as 2, 3 or 4. The circuit must be powered by 5 V.




| Clique na imagem para ampliar |
