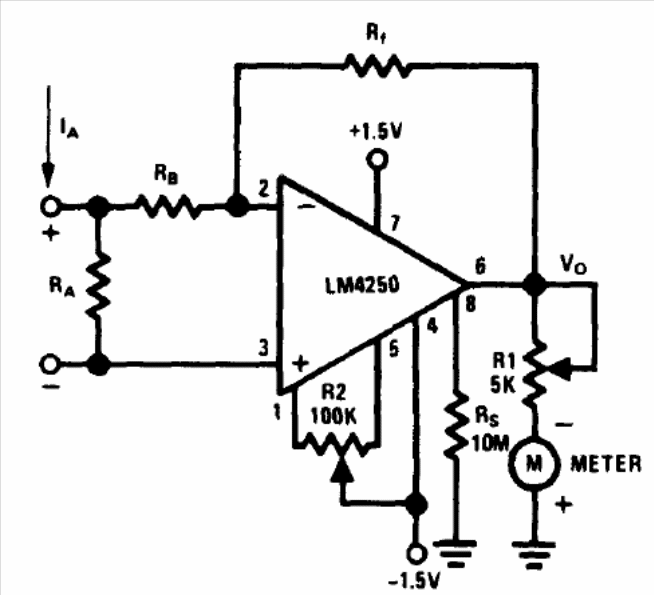

The presented circuit is suggested by National Semicondictor in its 1994 Linear Applications Handbook. CI is not very easy to obtain. The circuit can be powered by two 1.5 V batteries forming a symmetrical source. The table shows the values of the resistors for different measurement scales.
| Clique na imagem para ampliar |
