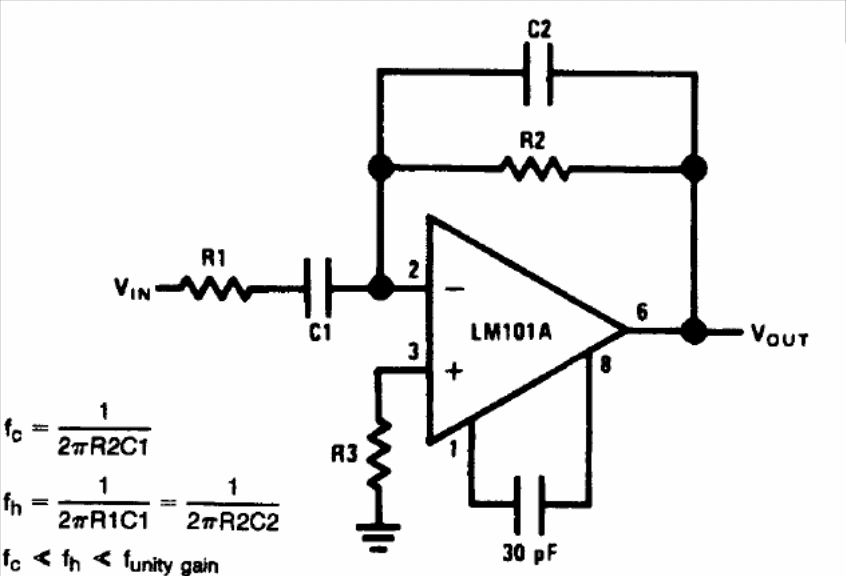

The configuration below, which can be implemented with other operators, is from the National Semiconductor's Linear Applications Handbook of 1994. The formulas for calculating the components are given next to the diagram and the supply must be symmetrical.
| Clique na imagem para ampliar |
