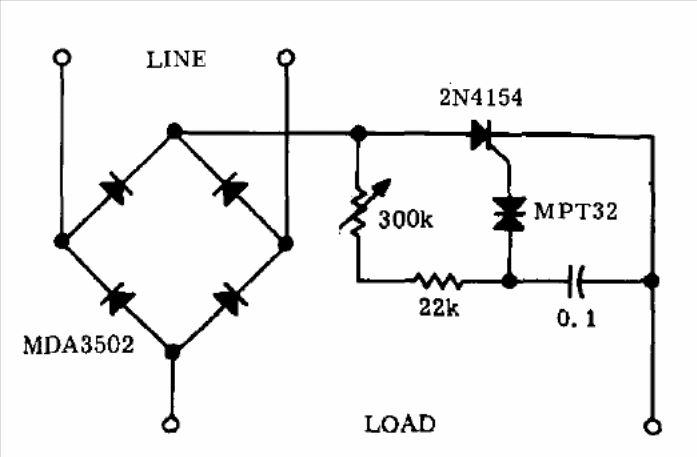

This power control from Motorola's 1971 SCR Power Control Fudamentals can control full wave loads using diodes according to the required current. Both diac and triac can be equivalent according to the controlled load. Equivalent SCRs can be used depending on the load power. The MPT32 is an SBS.
| Clique na imagem para ampliar |
