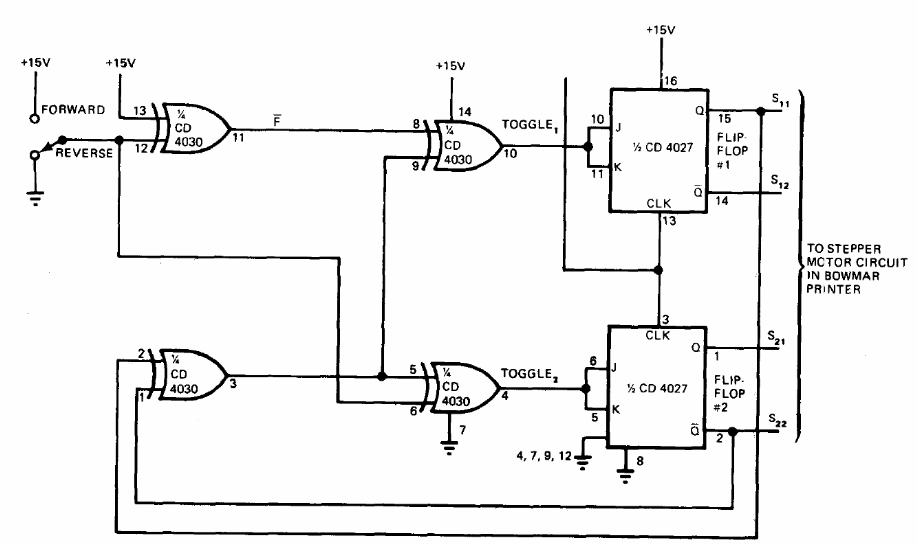

This configuration was found in a 1976 publication. The outputs of the logic circuits are applied to the power stages that make use of transistors according to the motor power. As a shield the signals are applied to pin 12 and the CMOS powered with 5 V.
