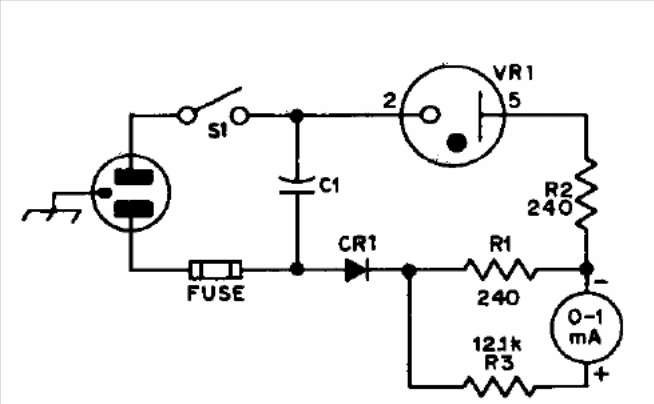

This circuit is from an old English documentation. It uses a common milliammeter to indicate the voltage of the power grid. The fuse is 1 A, and the diode can be a 1N4007. The circuit has the component values calculated for the 110 V network.
