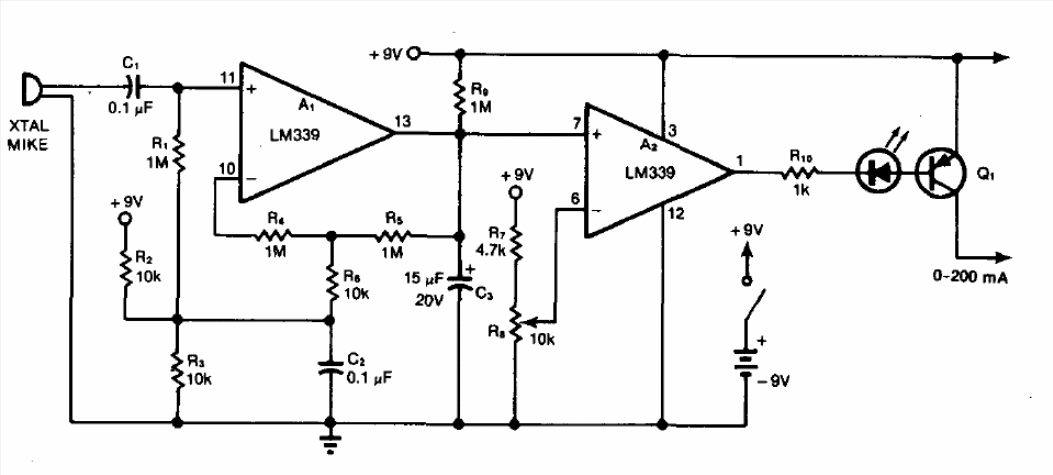

I found this circuit in a 1978 publication. The circuit can be assembled with a BD136 transistor to control relays or external loads. The supply must be made with a symmetrical power source and the microphone can be either crystal or more modern ceramic type. The 10k potentiometer controls gain and sensitivity.
